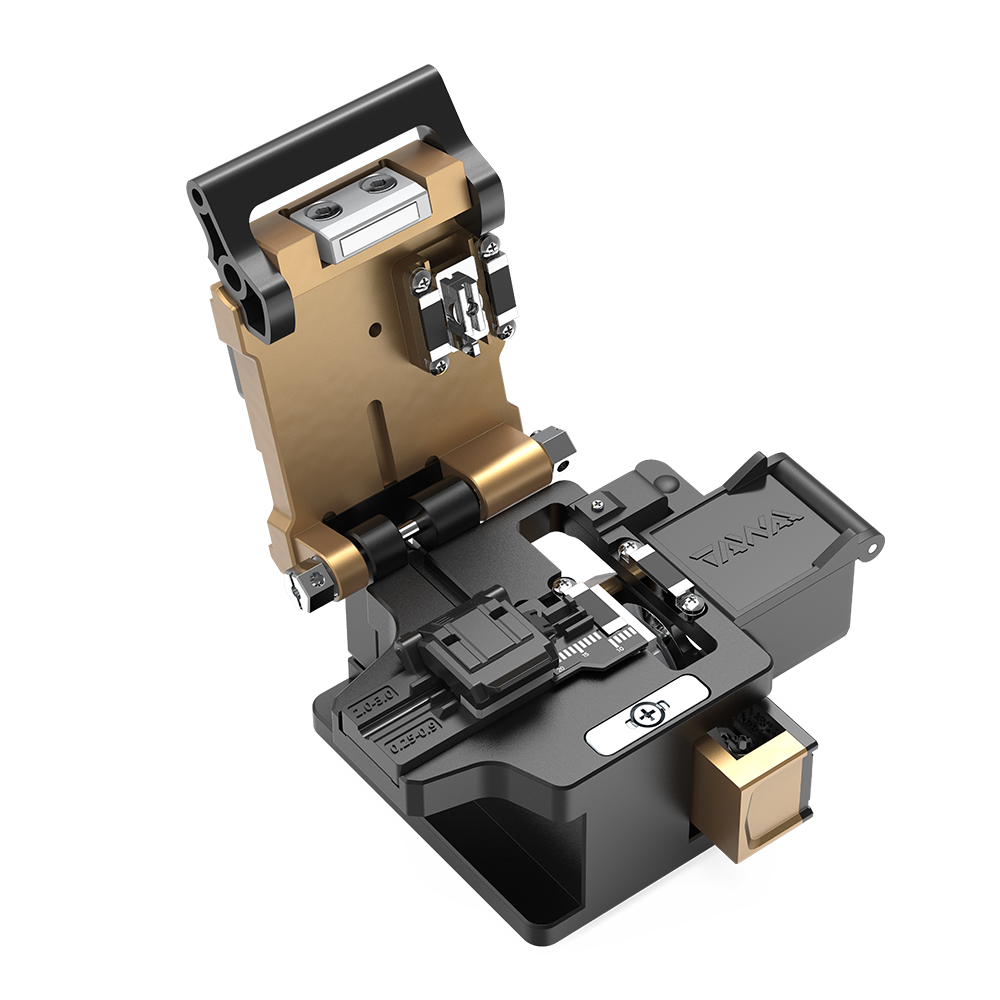

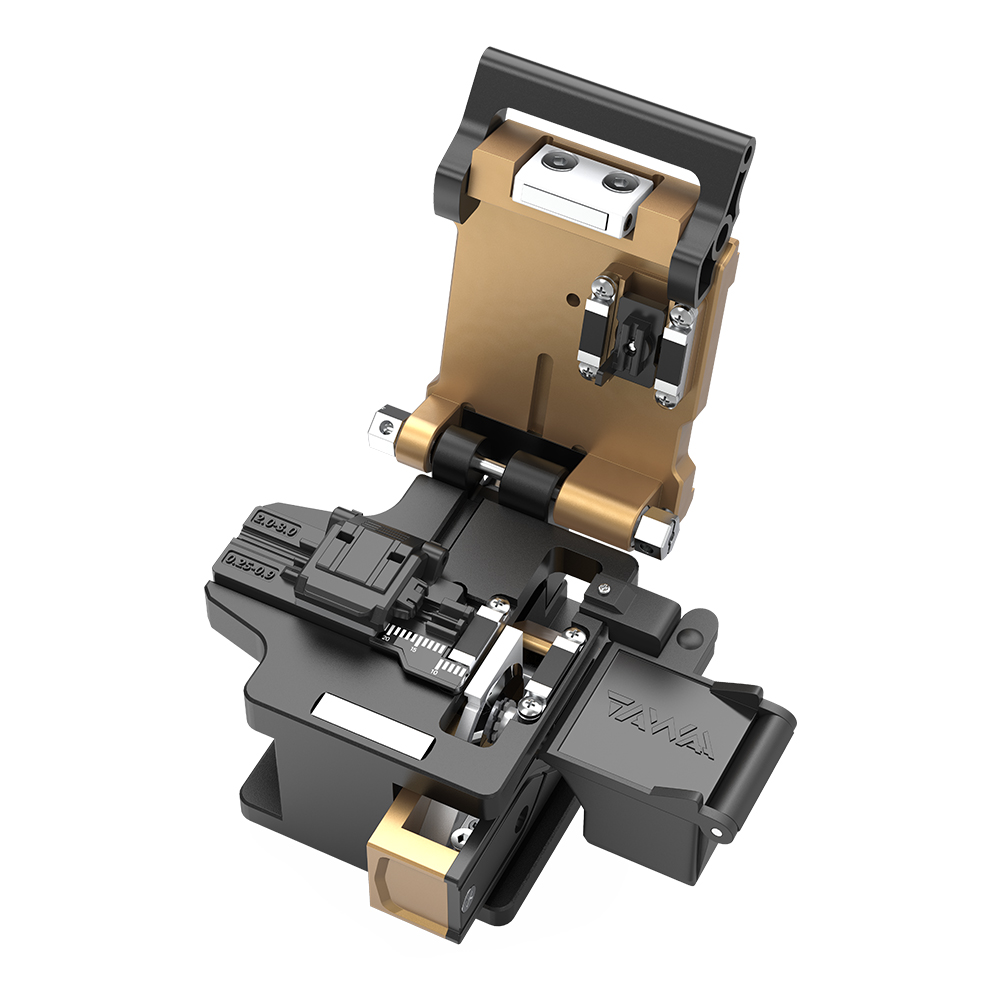

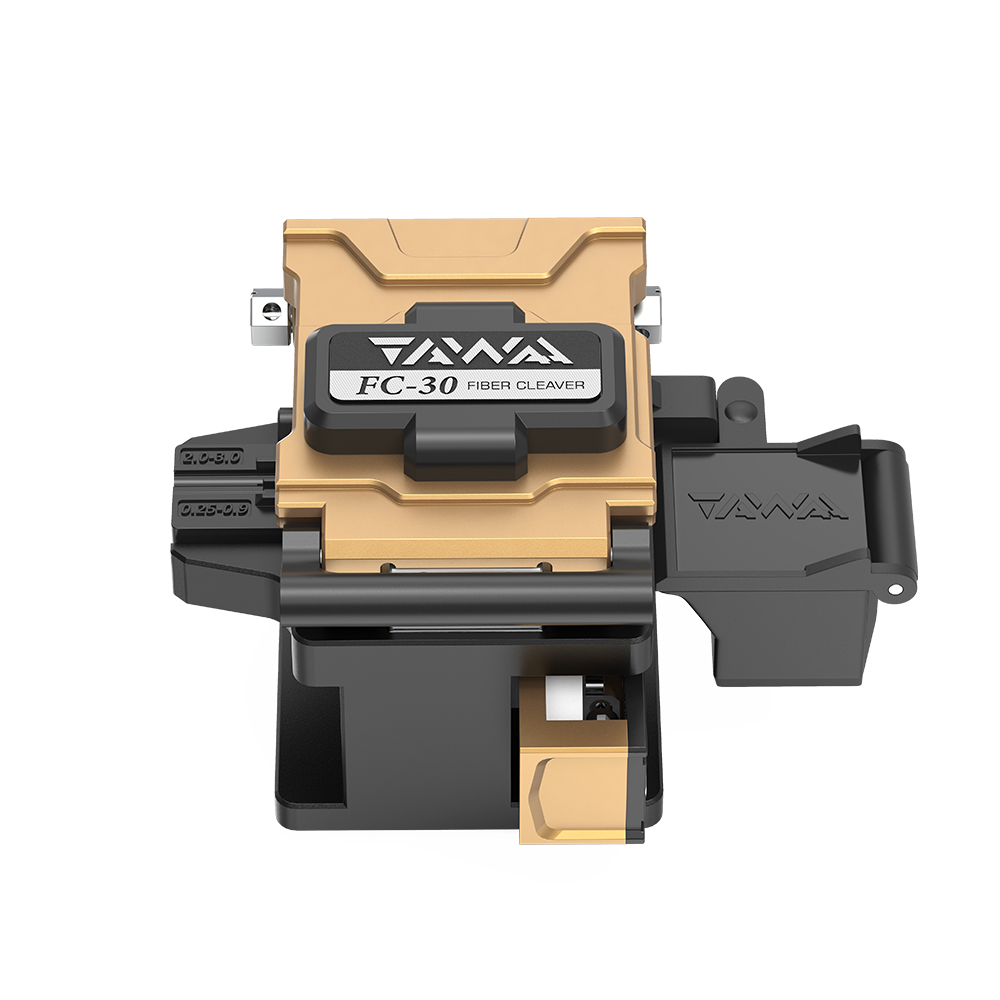

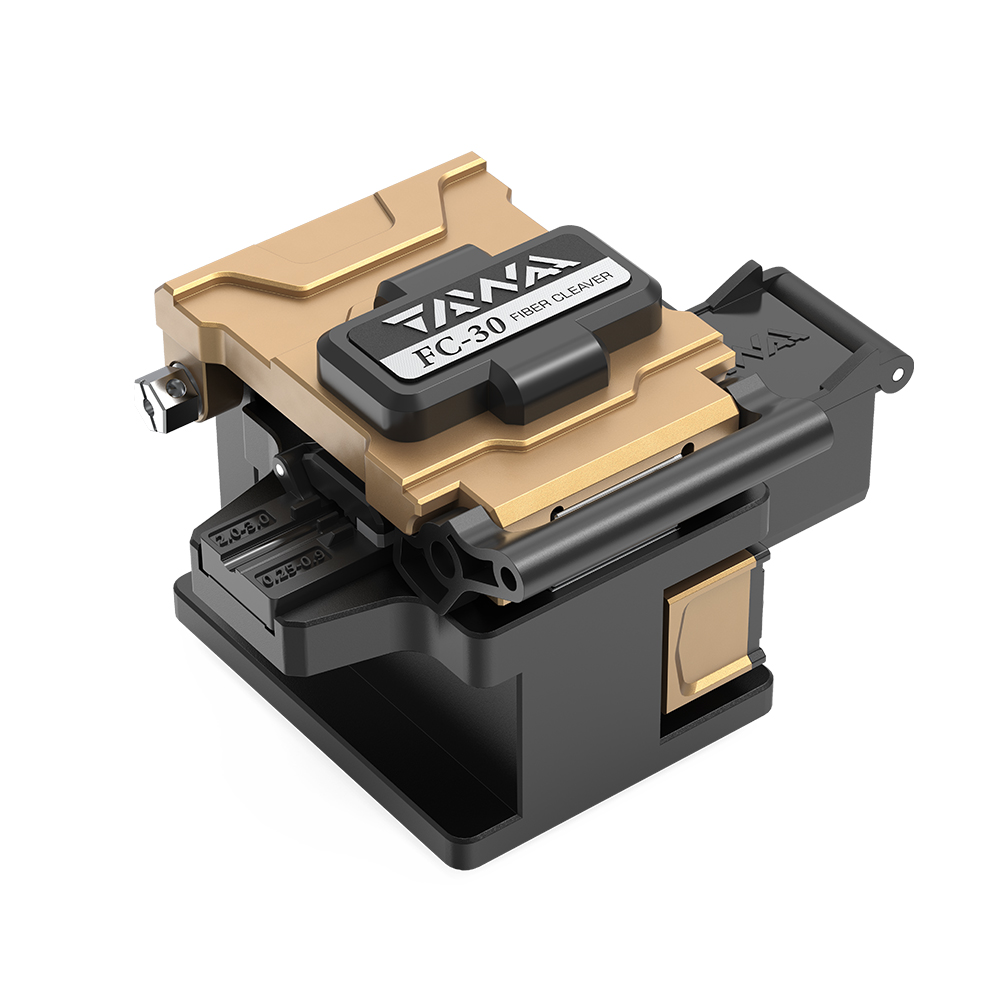

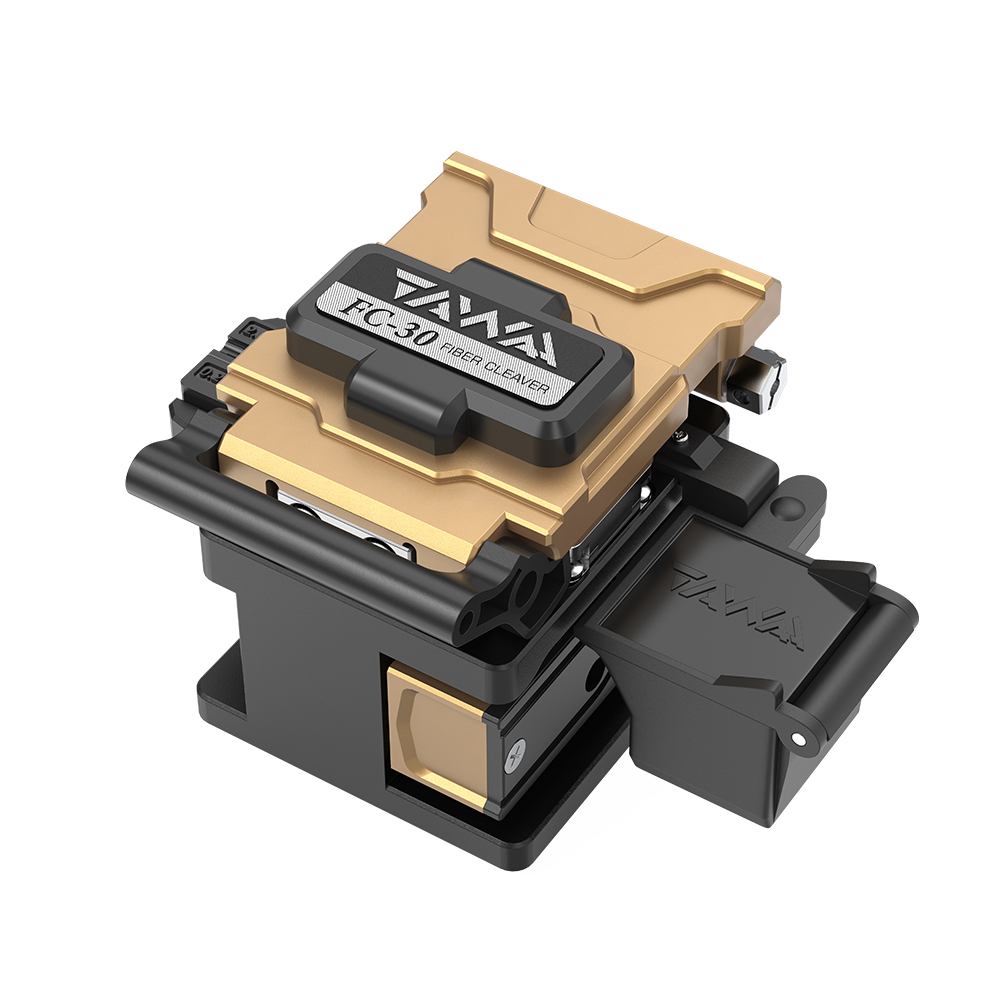

FC-30 High-precision fiber cleaver

Blade life up to 48,000 times
Typical cutting angle ≤0.5 degree

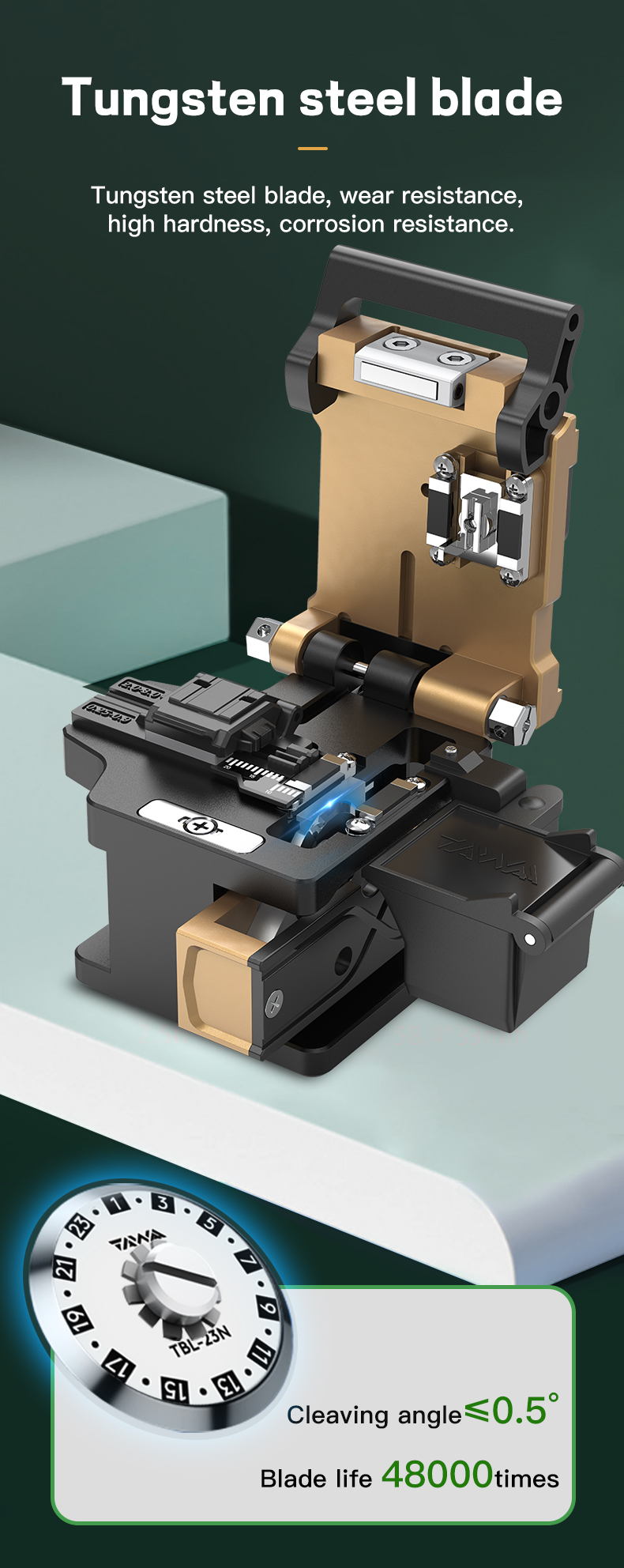

Tungsten steel blade, wear resistance,high hardness, corrosion resistance
Traditional bench top design, simple andeasy to use

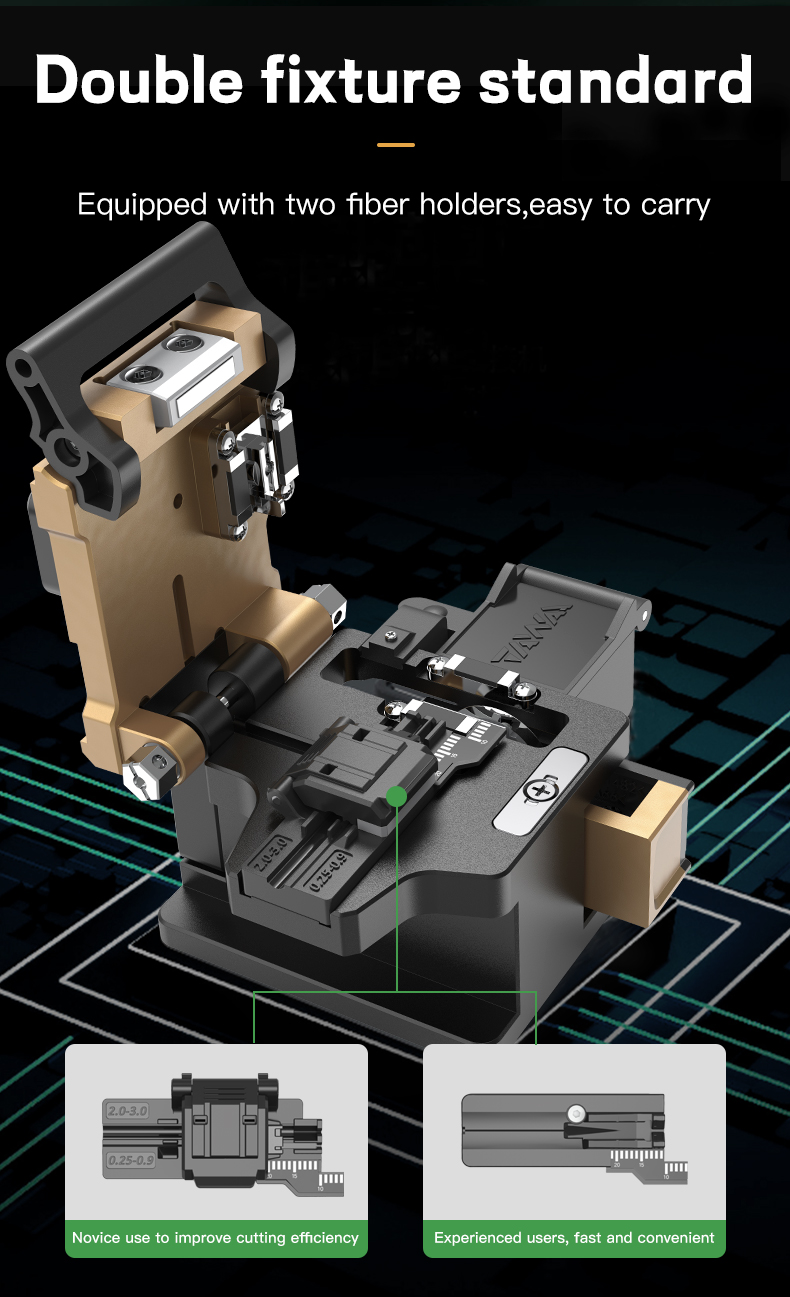

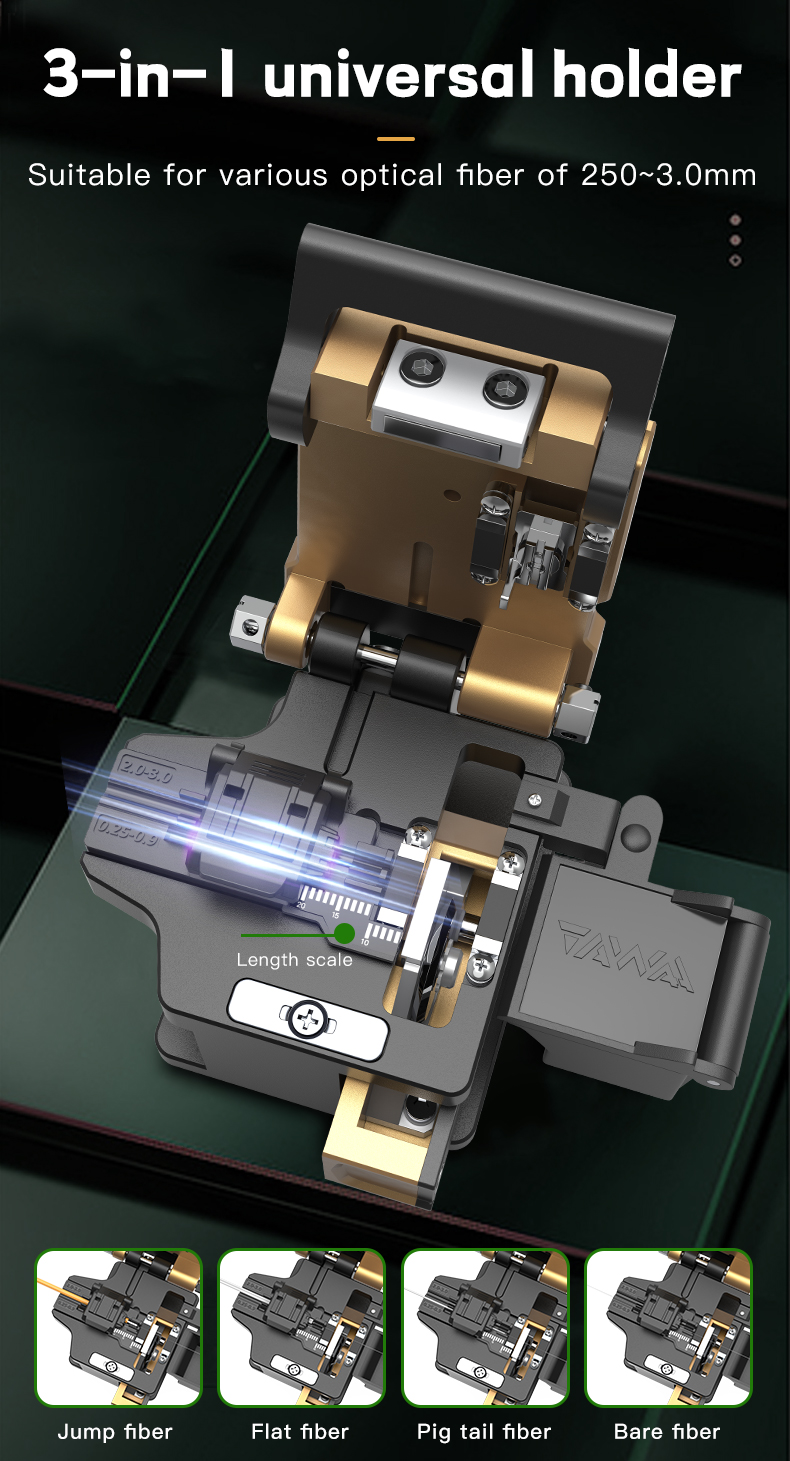

Double fixture design, suitable for various optical fibers of 250~3.0mm
High-precision CNC machining and forming, excellent texture

Product parameter

Fiber Meterial Single fiber
Cladding Diameter 125μm
Cleaved Length Single fiber: 8~20mm / Ribbon fiber: 10mm
Applicable Fiber Cable Single fiber: 250μm, 900μm, 3.0mm
/ flat cable / Ribbon fiber: 2 to 12 fiber cable

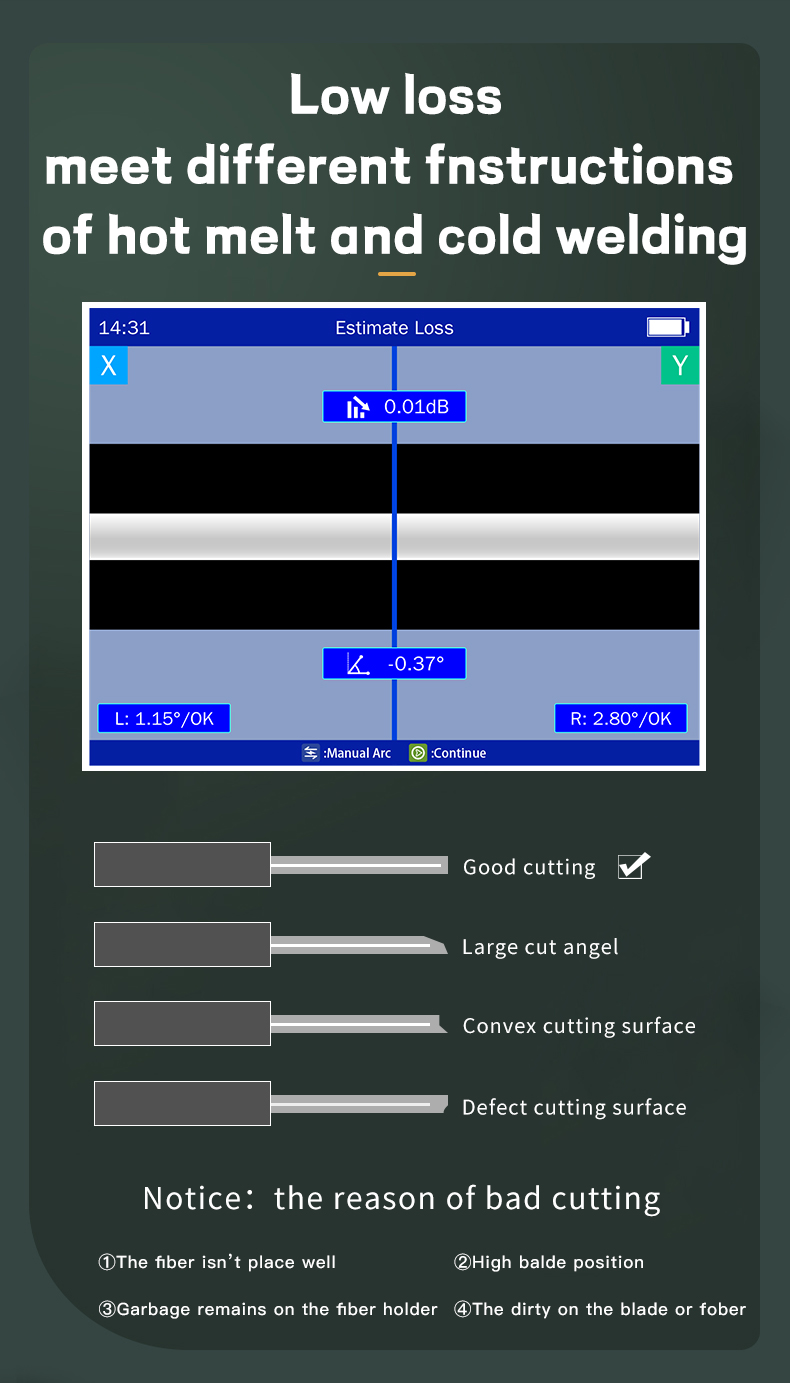

Typical Cleaved Angle Less than 0.5 Degrees  ★①
Typical Blade Life Total 48,000 fiber cleaves (replaceable)  ★②
Off-cut Collector Pre-fitted
Type of Offcut Bin Manual
Auto Return Pre-fitted
Dimension / Weight 63W *77D*63H(mm)  /  335g
★①  The fiber cleave angle changes by operating environment
★②  Blade life changes by operating environment

Product configuration

Fiber Cleaver FC-30 1

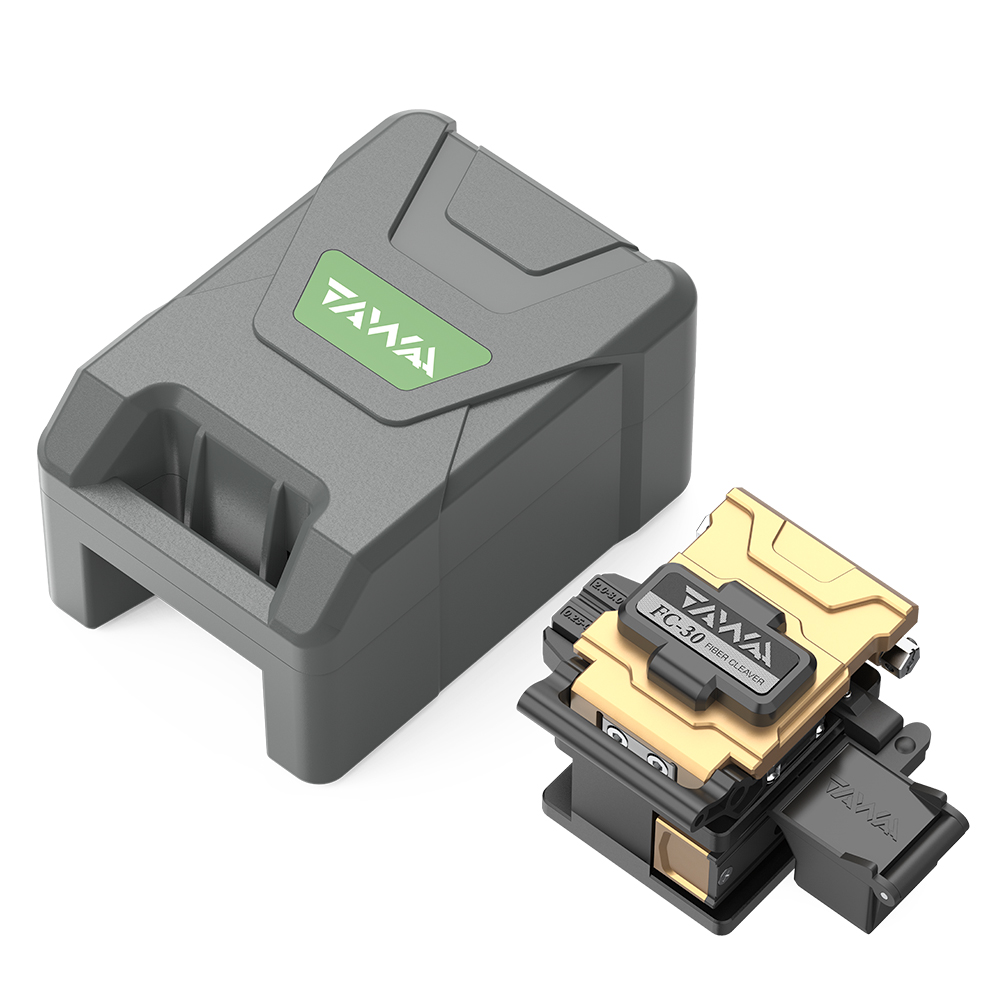

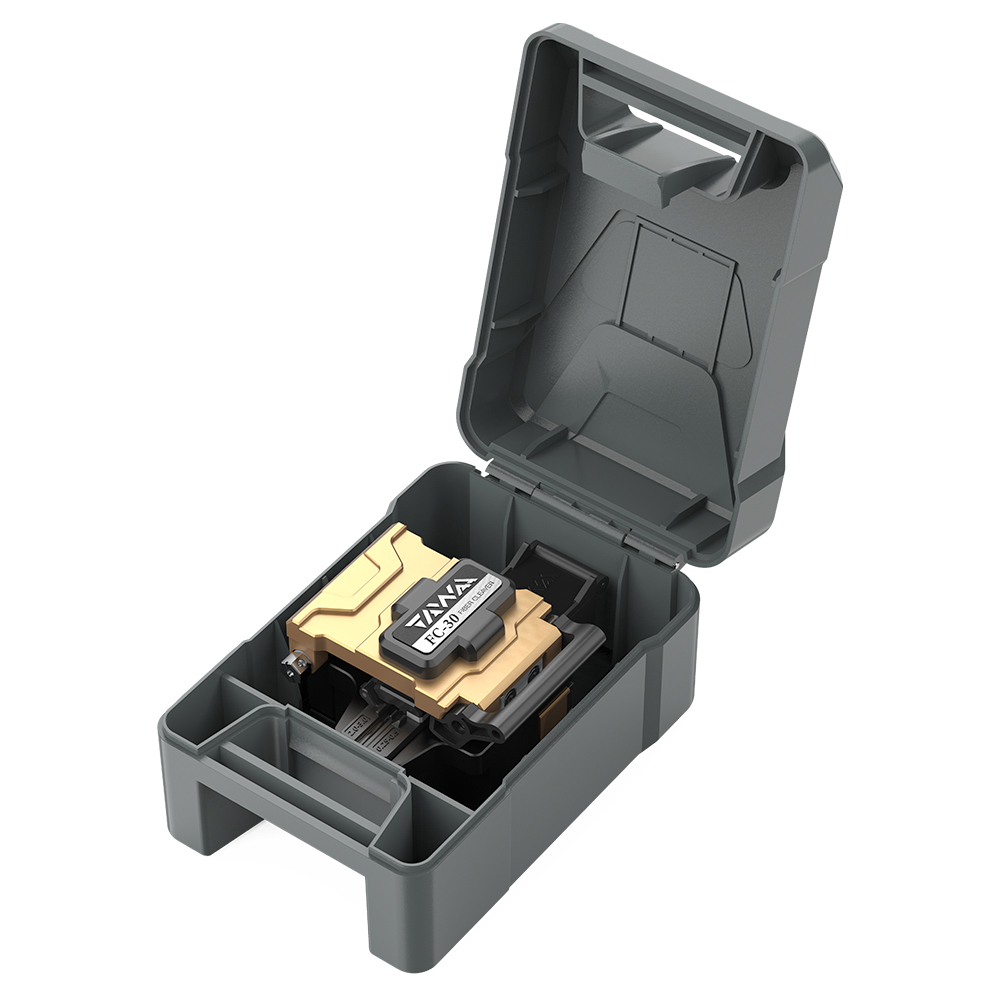

Carrying case 1
Fiber Clamp Type 2 1
Quick guide 1
